Mineral Water Plant

Mineral water plant is work on reverse osmosis system. S.S. R O Plant is use for Packaged drinking water industries.

3 to 4 week

1 year

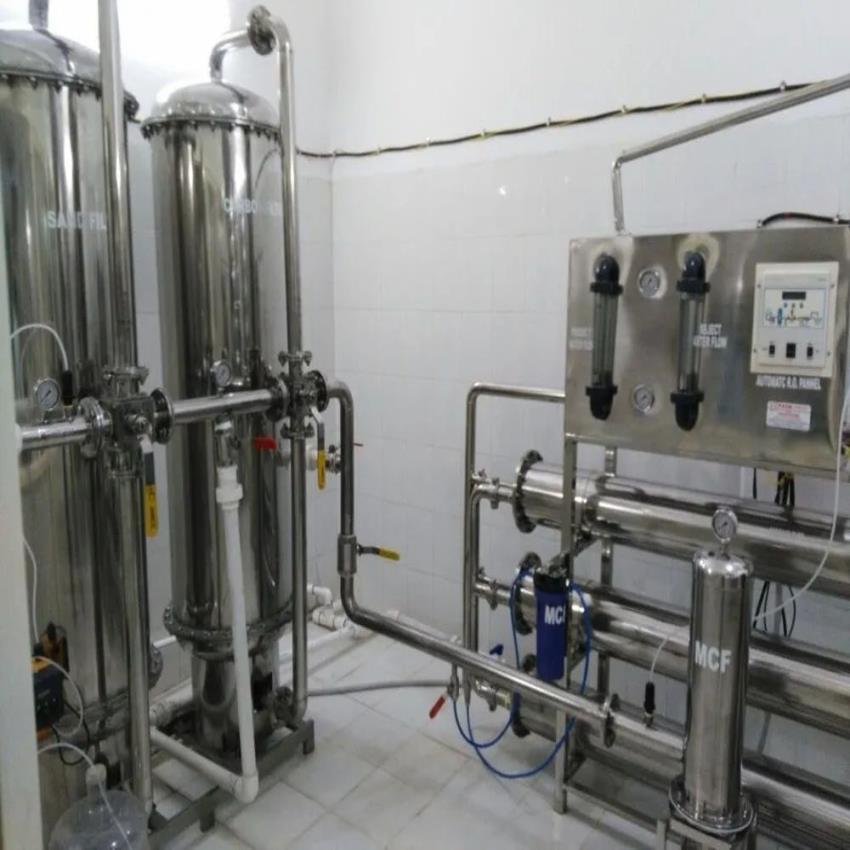

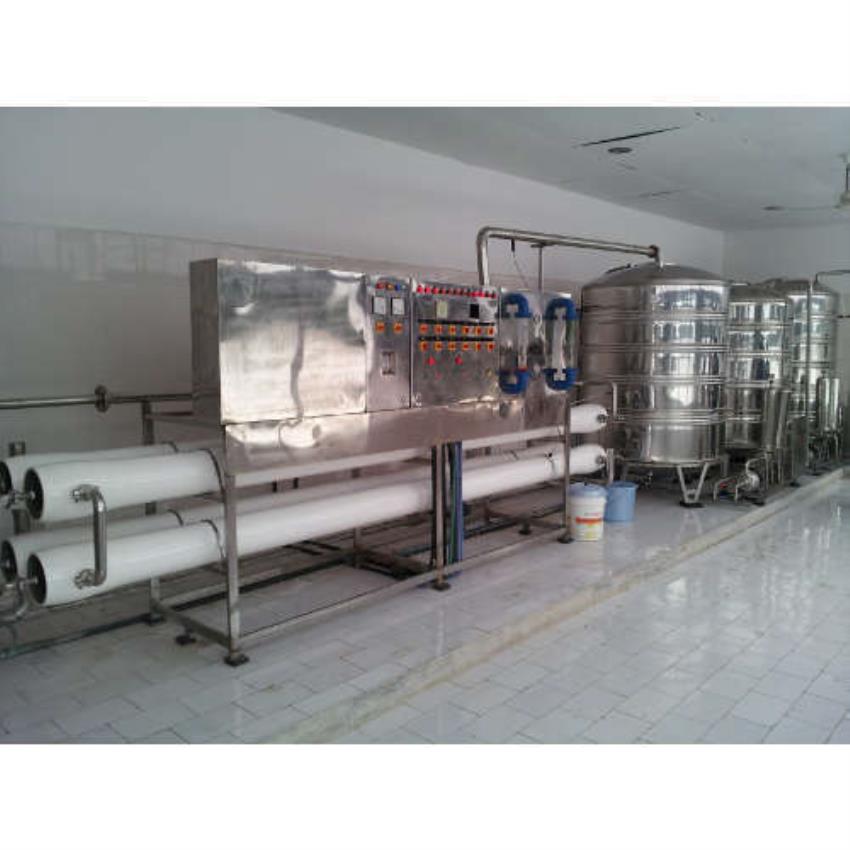

Mineral water plant is use for drinking water in PET bottle. Mineral water plant is made from s.s.WATER TREATMENT PLANT 2000 LPH Process:- Water is passed through following stage for process of filtration & separation.Pressure Sand Filter:-To remove suspended matter from the water. By means of Multi size Graded sand filled in the Vessel. This is natural process of filtration adopted by the nature.Activated Carbon Filter:-To remove Colour, Odor, Oil etc. By means of Activated Carbon filled in the Vessel. This is natural process of filtration adopted by the nature.Antiscalant Dosing:-To prevent the desalting element from scale deposition.Micron Filtration:-To remove the micron particles from the raw water. By means of using disposable candles having Perfect micron size of porosity for filtration.Osmotic pressure System ( H P Pump):- To create the osmotic pressure in raw water. By using pump.Desalination by R O Membrane Element:-To desalt raw water i.e. to reduce TDS. By using Semi permeable Membrane, Where ion filtration process is carried out by applying pressure in water. So finally we get Low salt water with low TDS and High purity. Here will have to drain water at one side to Wash Membrane filter element continuously because of filtration there is nothing to be polluted in system.Storage of Mineral Water:-To remove backpressure in R. O. Membrane elements.UV system:-To kill the bacteria from fine water.Ozonization:- To prevent the biological & microorganism growth in the stagnant water. SCOPE OF SUPPLY:-The scope of supply for 2000 Ltr./Hr. water project contains  Raw Water Feeding Pump 1 No. Pressure Sand Filter 1 No.  Activated Carbon Filter 1 No. Antiscalant Dosing Pump 1 No.  Micron cartridge filter 1 No High Pressure Pump 1 No. R.O. Element 2 No. Pressure Vessel for elements 2 No Instruments 1 set Electric control panel for RO system 1 No. SS storage tank & Ozone recirculation Tank2000 Lit 1 No. UV system 1 No. Ozone generator 1 No. Ozone circulating pump 1 No. Source of Water:-R.O. plant is designed based on 1500 TDS & 200 ppm raw water hardness. Treated Water Quality The approximate quality of treated water is as follows considered for design of system. P H : 7.00 to 7.5 T D S : Less than 150 ppm Feed Water Conditions For R.O. Systems. Max. Temperature : 40 deg. C Free Chlorine, Bacteria, Oil : Nil Iron, Manganese. etc. : Nil Turbidity : Less than 1.0 NTU Scope of Exclusion 1. Foundation for Equipments and any Civil Works.2. Power, Water and Electrifications.3. Raw water storage.4. Testing Chemicals and Facility. Scope of Supply:-The following are the technical specification for the equipments supply for water treatment plant.1. Raw Water Feeding Pump. Type : Centrifugal Working flow : 2.5 m3/hr. Working pressure : 2 kg/cm2 M.O.C. : C.I. Power : 1.5/2 HP Make : Kirlosker / CRI / Hitesh/ Equ. Nos. Offered : One No.2. Pressure Sand Filter. Type : Down Flow Graded Sand Type Model : 350/APTE/MGF M.O.C. : SS Size Dia X Height. : 350mm x 1500 mm. Pipe Line Size : 25 mm. Sand Qnty. : 250 Kgs. Working Flow : 4.0 m3/hr.3. Activated Carbon Filter. Type : Down Flow Graded Sand Type Model : 350/APTE/MGF M.O.C. : SS Size Dia X Height. : 350mm x 1500 mm. Pipe Line Size : 25 mm. Carbon Qnty. : 80 Kgs. Working Flow : 4.0 m3/hr.4. Antiscalant Dosing . Type : Electronic dosing type. Dosing Pump : Electronic Diaphragm type. M.O.C. of Dosing Pump : PVC Capacity of Dosing : 0 to 4 LPH. Rate Of Dosing Chemical. : 2 to 4 PPM. Dosing Tank. : 40 Ltr H.D.P.E. Power. : 240 V, Single Phase. Make. : E Doze / Equ.5. Micron Cartridge Filter. Model : MCF 20/APTE/SS Size : 20” Long. Micron Rating : 5 Micron. Type of Candle : P.P. Wound. Material Of Housing : PP Nos. of Candles : 1 Nos. Working Flow : 4.0 m3/hr.6. High Pressure Pump. Type : Vertical Centrifugal. Working Pressure : 10 Kgs/cm2. Working Flow : 4.0 m3/hr. Motor : 2/3 HP,2900 rpm, 3 phase Make of pump : CRI/SHAKTI/SIMDGE / LUBI /EQUE.7. R O Membrane Elements. Model : 8040 Element Type : TFC Spiral Wound Material : Polyamide. Size : 8” Dia X 40” Long Make : Dow / GE / Eque. Nos. Offered : 2 nos.8. Pressure Vessels. M.O.C. : FRP Type : Horizontal Tube Type Size : 8” X 80” Max. Pressure : 300 psi. Working Pressure : 125 psi. Nos. Offered : 1 Nos.9 UV SYSTEM - 1 NO. 2000 LPH CAPACITY SS -31610. Instruments & Electric Control panel Pressure Gauges : 4 Nos. Rotameters : 2 Nos. Electric control panel : 1 No.11. Product Water Storage Tank & Ozone recirculation Tank . Type : Cylindrical Type. Capacity : 1000 Ltrs. M.O.C. : SS 304 BA/Hyginic. Nos offered. : 1 nos. Make. : Packtech 12. Ozone Generating Set. Type : Corona Tube Type Capacity : 2 gm/hr. Ozone Dose : 1.5 to 2 ppm Make : Aqua zone/equivalent13. Ozone Circulating Pump. Type : Centrifugal Multistage. Power : 0.5HP Max. Flow : 1,500 Lph Working Flow : 1,500 Lph M.O.C. : SS 304 Working Pressure : 2.0 Kg/Cm2 Make. : Simdge/eq….

1 month

1 year
